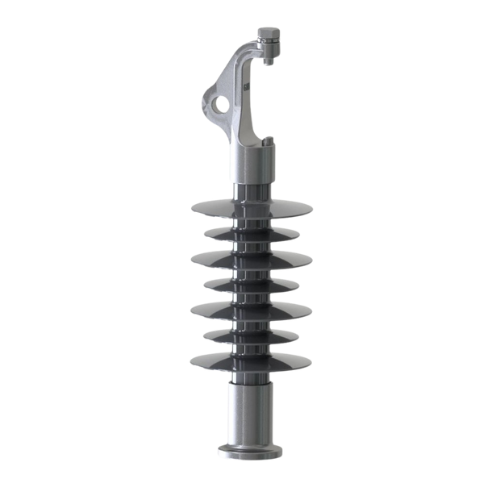

Composite Line Post Insulator, 35kV, 51-23
- 35kV ANSI Class 51-23 Composite Line Post Insulator with HTV silicone housing, horizontal clamp top and stud base end fittings.
- Composite Line Post Insulators offer specific advantages including:
- Enhanced reliability in contaminated environments including salt spray and agricultural/industrial pollution zones.
- Lightweight for easy handling and installation, reducing time and labor costs.
- Reduced maintenance, contaminants are naturally washed away with the rainfall.
- Additional Information:
- Category: Line Post Insulators
- Sub Category: Horizontal Clamp Top Stud Mount
- Typical Application Voltage (kV): 35kV
- Leakage (in): 30.2
- ANSI Class: 51-23
- Section Length (in): 16.2
- SML (lbs): 2800
- STL (lbs): 5000
- Nominal Thread Hole: 3/4"-10
- Download PDF Datasheet Here
Standard Packaging Information
| Part # |
Description |
Pkg Qty |
Pkg Per Carton |
Carton Weight |
|
NCLP03523 |
Composite Line Post Insulator, 35kV, 51-23 |
3 |
1 |
32 |
