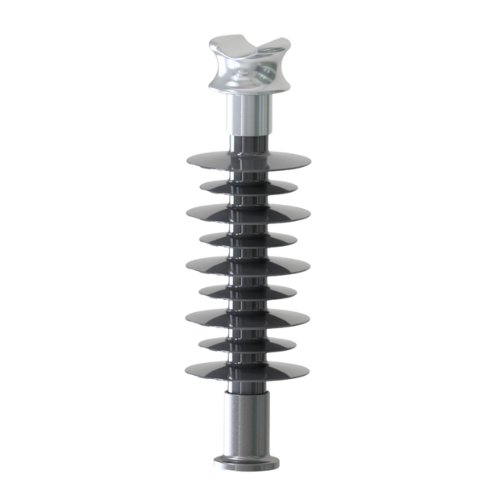

Composite Line Post Insulator, 46kV, 51-4F Al
- 46kV ANSI Class 51-4F Composite Line Post Insulator with HTV silicone housing, aluminum F-neck and stud base end fittings.
- Composite Line Post Insulators offer specific advantages including:
- Enhanced reliability in contaminated environments including salt spray and agricultural/industrial pollution zones.
- Lightweight for easy handling and installation, reducing time and labor costs.
- Reduced maintenance, contaminants are naturally washed away with the rainfall.
- Additional Information:
- Category: Line Post Insulators
- Sub Category: F-Neck Tie Top
- Typical Application Voltage (kV): 46kV
- Leakage (in): 38.4
- ANSI Class: 51-4F
- Section Length (in): 19.2
- SML (lbs): 2240
- STL (lbs): 2000
- Nominal Thread Hole: 3/4"-10
- Download PDF Datasheet Here
Standard Packaging Information
| Part # |
Description |
Pkg Qty |
Pkg Per Carton |
Carton Weight |
|
NCLP0464FA |
Composite Line Post Insulator, 46kV, 51-4F Al |
3 |
1 |
18 |
