• Allied Bolt Suggest Best Practices/installations notes:

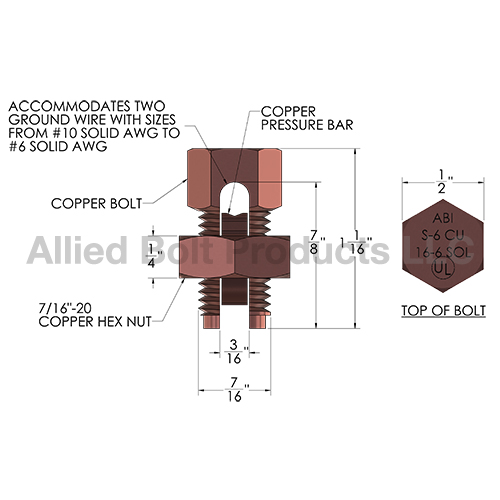

    • Used to make a bonding connection between two copper ground wires.
    • Bolt and nut formed from high-strength corrosion resistant C210 Copper.
    • Specially designed pressure bar provides high pull-out strength.
    • Under torque, provides high contact pressure between ground wires.
    • Smallest two conductors accepted: 10 Sol.
    • Largest two conductors accepted: 6 Sol.
    • Min. wire size that can be used with Max. wire size: 16 Sol.
    • UL listed file under number E479014.

Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
854 S-6 COPPER SPLIT BOLT 100 4 20
