• Allied Bolt Suggest Best Practices/installations notes:


    • Used in drop cable installations as an attachment to strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable.

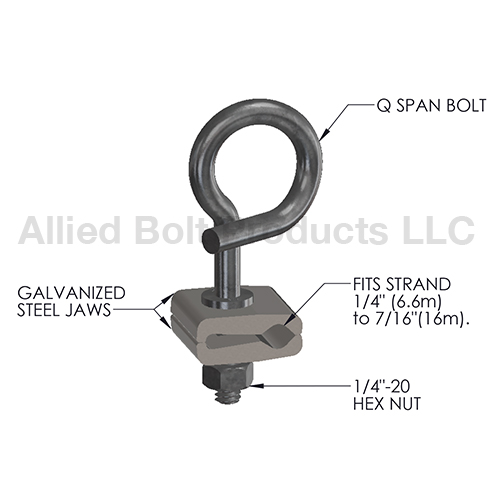

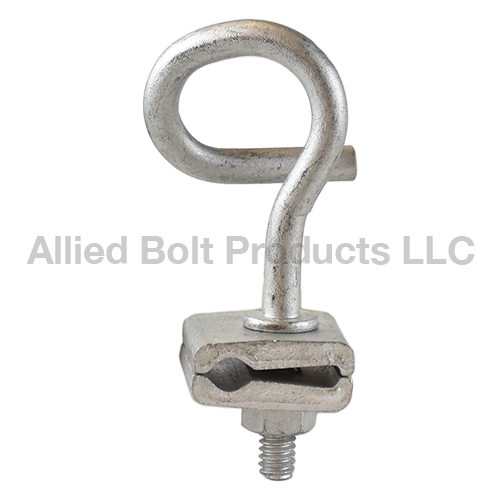

    • Clamp consists of a set of steel jaws, a 1/4" diameter “pig-tail” shaped bolt, and a hex nut.
    • The jaws are rolled and stamped from AISI 1018 tempered steel.
    • The bolt and hex nut are formed from Grade 2 Steel.
    • Nut and bolt are hot dip galvanized to meet ASTM Specification A153.
    • Jaws are mechanically galvanized to meet ASTM Specification B695.
    • Attaches to strand ranging in size from 1/4" (6.6m) to 7/16"(16m).

Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
4042 Q SPAN CLAMP 25 4 17
