• Allied Bolt Suggest Best Practices/installations notes:

#6 AWG BRONZE VISE CONNECTOR

    • Used for distribution, service bonding, or tap connections.
    • "V" grooves properly align ground wires for maximum engagement.
    • Bolt and washer formed from 304 Stainless Steel for maximum corrosion resistance.
    • Overlapping "lips" on Connector prevent ground wire from escaping.
    • Tight compression on ground wires prevents Connector from loosening under vibration.
    • Maximum 2 conductors accomodated is #6 SOL.
    • Minimum 2 conductors accomodated is #10SOL.
    • UL Listed under file number E178438.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
862 #6 AWG BRONZE VISE CONNECTOR 50 8 36

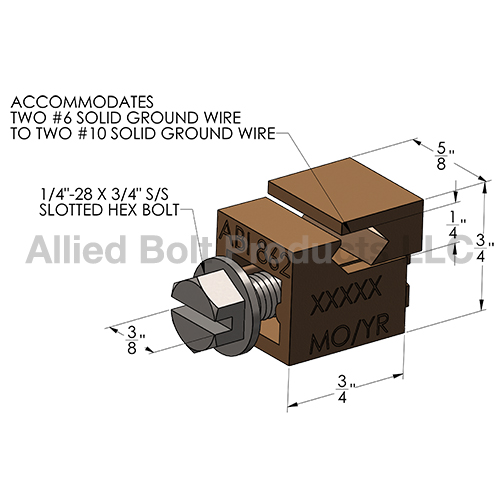

schematic

LOGIN   for 3D Installation and Pricing
