• Allied Bolt Suggest Best Practices/installations notes:


    • Offers excellent holding power with minimal soil disturbance.

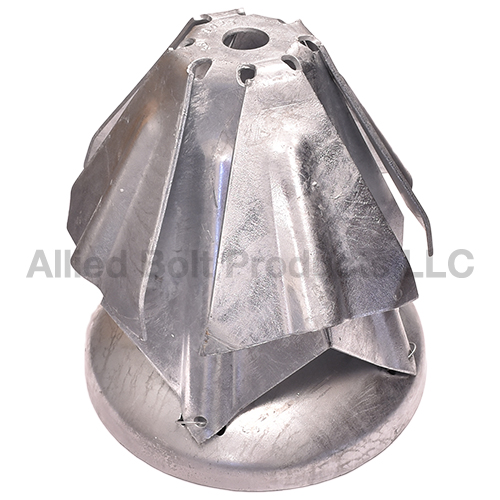

    • A two piece assembly that consists of a curved base plate and an integral unit with eight expanding blades.
    • The anchor is hot dip galvanized to meet ASTM specifications F2329.

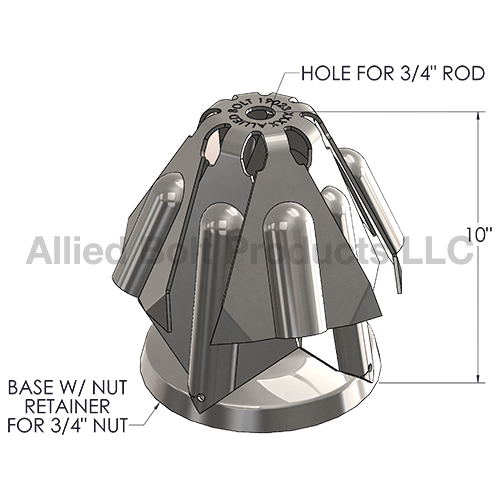

    • Formed metal cavity on the underside of the curved base unit accepts the nut of the guy rod when assembling the anchor.
    • The blades expand in a lateral motion by forcing the curved blades against the curved base.
    • Anchor is for 10" diameter hole.
    • Manufactured from AISI 1018 Steel.
    • Holding strength per soil class:
      • Soil Class 3: 23000 lbs (Limited by rod strength)
      • Soil Class 4: 23000 lbs (Limited by rod strength)
      • Soil Class 5: 21000 lbs
      • Soil Class 6: 16500 lbs
      • Soil Class 7: 12000 lbs

Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
19023 10" EXPANDING ANCHOR FOR 3/4" ROD 1 1 21
